ING

Normalized and in-line

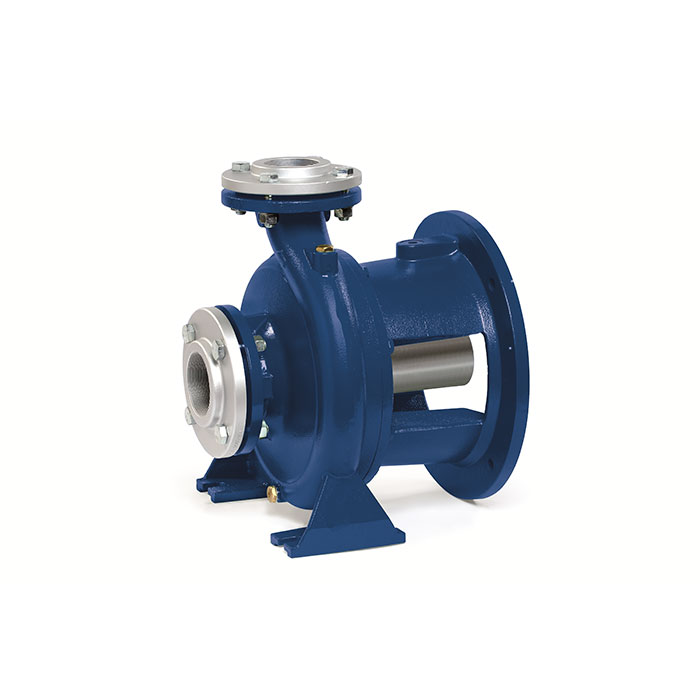

Normalized centrifugal pumps with stub shaft and standard motor
The normalised centrifugal pumps, made in compliance of DIN 24255 (UNI EN 733) standards, are available in monobloc version CN, with stub series CNG and ING, and with flexible coupling series BSN.
They have been designed to pump clean liquids, without abrasives and suspended solids, non-explosive or aggressive for the pump’s materials.

  •  Liquid temperature not higher than 35 °C for domestic use (CEI EN 60335-2-41) or 90 °C for other use, while the ambient temperature must not be higher than 40 °C
  •  Flow rates up to 240 m3/h.
  •  Heads up to 100 m.
MAGGIORI INFORMAZIONI CATALOG INSTRUCTION MANUAL

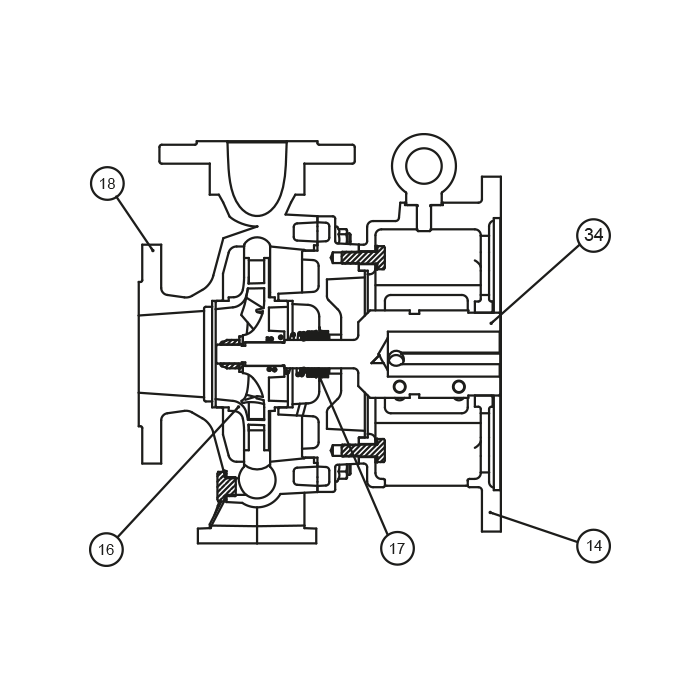

TECHNICAL FEATURES

  • Pump body and motor bracket : cast iron G20 with anticorrosive coating
  • Orifices in/outlet : DIN 2532 standards
  • Impeller : cast iron G20 with cataphoresis treatment
  • Threaded counter flanges : calvanized steel complete with EPDM gaskets
  • Pump shaftì : stainless steel AISI 304
  • Mechanical seal : carbon – ceramics
