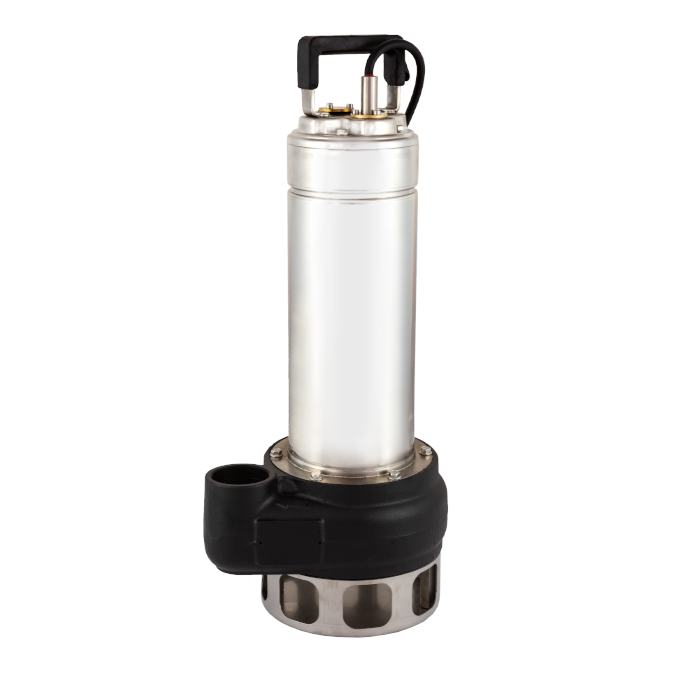

SVX

Submersible for wastewater pumps

The submersible draining electric pump with vortex impeller series SVX have been designed for pumping dirty liquids, non-explosive or chemically aggressive for the pump’s materials, either contamining suspended solids max Ø 50 mm.
Temperatures not higher 35 °C (CEI EN 60335-2-41).
MAGGIORI INFORMAZIONI CATALOG INSTRUCTION MANUAL

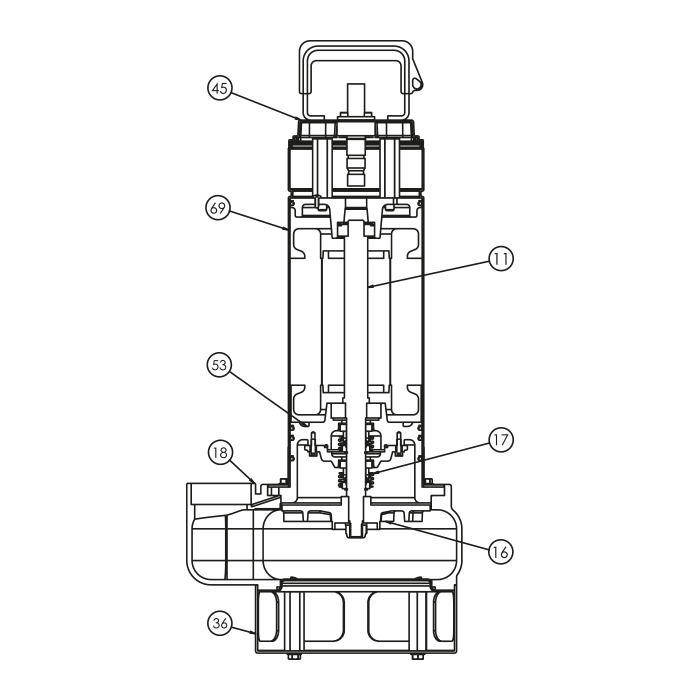

TECHNICAL FEATURES

  • Motor body: Stainless steel AISI 304
  • Pump body: Cast iron G20 with anti-corrosive coating
  • Impeller: Cast iron G20 with anti-corrosive coating
  • Pump shaft: Stainless steel AISI 420
  • Pump’s side mechanical seal: BT Burgmann Q7 model with high efficiency in silicon carbide
  • Motor’s side seal: BT Burgmann Q7 model with high efficiency in silicon carbide
  • Feeding cable 10 m H07RN-F
  • Crushing system for SGR series: precision-cast temperate stainless steel AISI 440 C

MOTOR

  • Two poles induction rewindable motor
  • Protection IP 68
  • Class F insulation
  • Single-phase feeding with compulsory “Q di quadro”
  • Three-phase feeding with compulsory protection to be provided by the user or with “Q di quadro”
  • Continuous duty if completely submerged.
