VX

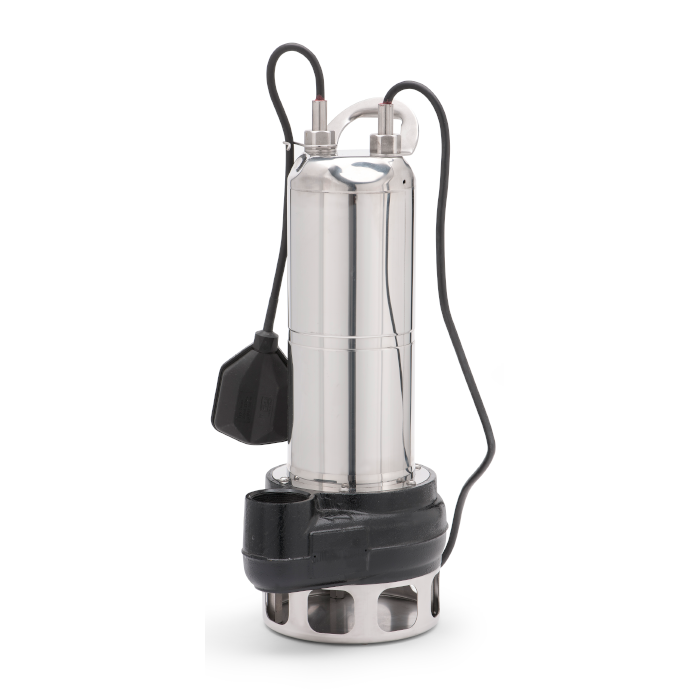

Submersible for wastewater pumps

The submersible draining electric pump with vortex impeller series VX have been designed for pumping dirty liquids, non-explosive or chemically aggressive for the pump’s materials, either containing suspended solids max Ø 50 mm.

35 °C (CEI EN 60335-2-41).

MAGGIORI INFORMAZIONI CATALOG INSTRUCTION MANUAL

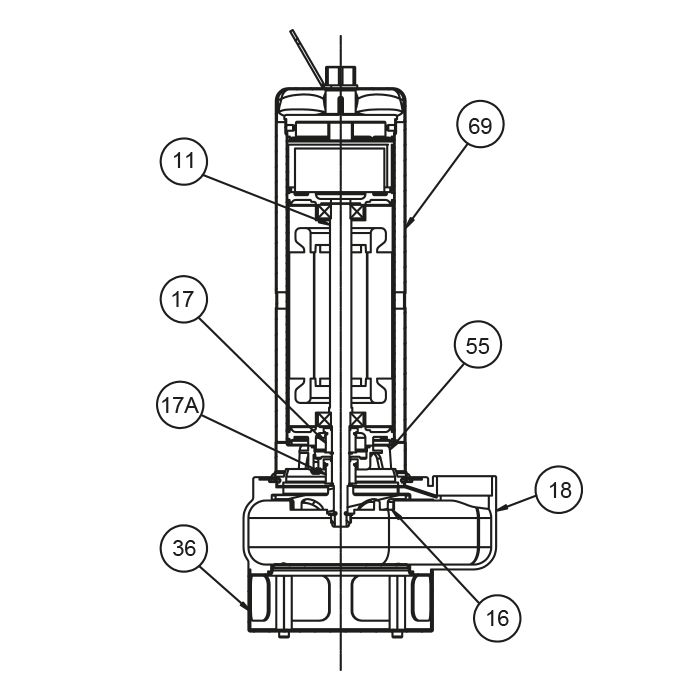

TECHNICAL FEATURES

  • Motor body and cover with handle: stainless steel Aisi 304
  • Pump body: cast iron G20 with anti-corrosive coating
  • Impeller: cast iron G20 with anti-corrosive coating
  • Pump shaft: stainless steel Aisi 304
  • Pump’s side mechanical seal: silicon carbide- alumina
  • Motor’s side seal:  graphite-alumina
  • Quick cable coupling watertight connector
  • Feeding cable: 10 m H07RN-F

MOTOR

  • Two poles induction rewindable motor with protection IP 68, class F insulation.
  • Single-phase feeding with incorporated motor protector and capacitor permanently connected.
  • Three-phase feeding  with compulsory protection to be provided by the user.
  • Continuous duty

ON REQUEST

  • Single-phase automatic version with float switch (AUT).
  • Brass hose connector Ø 60 mm.
