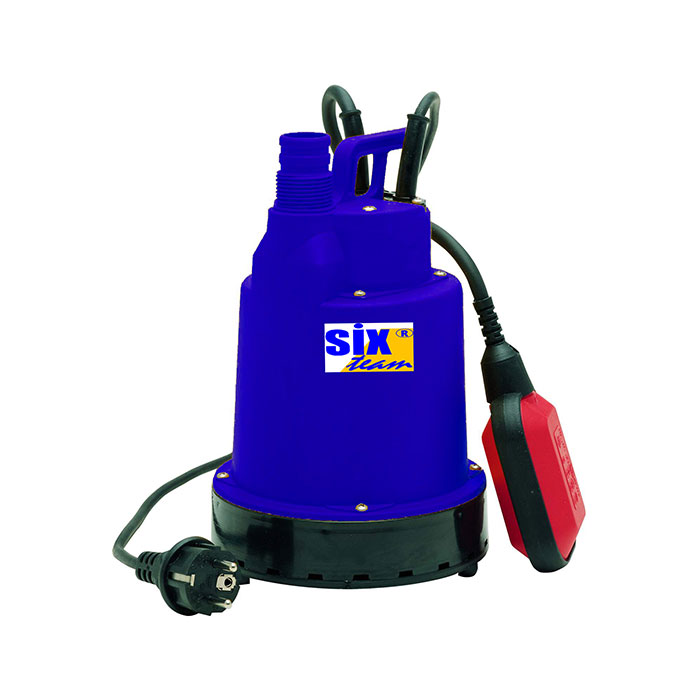

WAPY

Submersible draining

Submersible draining electric pumps
The submersible electric pumps with open impeller series WAPY have been designed to pump clear or slightly dirty liquids, without abrasives and suspended solids, non-explosive or aggressive for the pump’s materials.

Liquid temperature not higher than 35 °C (CEI EN 60335-2-41).
The pumps may work also partially immerged.

MAGGIORI INFORMAZIONI CATALOG INSTRUCTION MANUAL

TECHNICAL FEATURES

  • Pump body, impeller, outer motor casing, filter base and handle: Gaiplen A 20/12 NTAN
  • Motor body: in die casting aluminium UNI 5076
  • Pump shaft and screws: in stainless steel Aisi 420 F
  • Mechanical seal in carbon-ceramics
  • 5 m H05RN-F feeding cable
  • Max. immersion 5 m

MOTOR

  • Two poles induction rewindable motor, cooled by the pumped liquid, with protection IP 68, class F insulation.
  • Single-phase feeding with incorporated motor protector and capacitor permanently connected.
  • Continuous duty if completely submerged.

ON REQUEST

  • Automatic version with float switch (WAPY Aut).
